Plot spatial cell coordinates with cluster boundaries

Source: R/PlotBoundary.R
PlotBoundary.Rd

Plots spatial cell locations and overlays cluster or population boundaries if available. If boundary is not provided and one_cluster is specified, the boundary will be automatically generated using the getBoundary() function. This function supports plotting either all clusters or a specific cluster using sub_plot = TRUE. Boundaries can be overlaid as polygons to visualize spatial subregions.

Usage

plotBoundary(
  data = NULL,
  cluster_col = NULL,
  one_cluster = NULL,
  boundary = NULL,
  colors = colors15_cheng,
  point_size = 0.5,
  color_boundary = "black",
  linewidth_boundary = 1.5,
  sub_plot = FALSE,
  split_by = NULL,
  ncol = NULL,
  angle_x_label = 0,
  theme_ggplot = theme_spneigh(),
  legend_size = 2,
  ...
)

Arguments

data

A Seurat object, a SpatialExperiment object, or a data frame containing spatial coordinates.

cluster_col

Character scalar specifying the metadata column name containing cluster assignments. If NULL, a default is used depending on the input object type:

  • "seurat_clusters" for Seurat objects

  • "cluster" for SpatialExperiment objects

one_cluster

The cluster ID to plot and optionally compute its boundary. Required if sub_plot = TRUE and boundary is not provided.

boundary

A data frame with columns x, y, and region_id or an sf object of POLYGON or LINESTRING geometries.

colors

A vector of cluster colors. Default uses colors15_cheng.

point_size

Numeric. Size of the points representing cells. Default is 0.5.

color_boundary

Color for boundary lines. Default is "black".

linewidth_boundary

Numeric. Line width for boundary outlines. Default is 1.5.

sub_plot

Logical. If TRUE, only cells from the specified one_cluster are plotted. If FALSE (default), all clusters are plotted.

split_by

Optional column name in data to facet the plot by (e.g., sample, condition).

ncol

Number of columns in the faceted plot when split_by is used. Passed to ggplot2::facet_wrap(). Default is NULL, which lets ggplot2 determine layout automatically.

angle_x_label

Numeric angle (in degrees) to rotate the x-axis labels. Useful for improving label readability in faceted or dense plots. Default is 0 (no rotation).

theme_ggplot

A ggplot2 theme object. Default is theme_spneigh().

legend_size

Numeric. Size of legend keys. Default is 2.

...

Additional arguments passed to getBoundary when auto-generating boundaries.

Value

A ggplot object displaying the spatial layout of cells, with optional boundary overlays.

Examples

# Load coordinates
coords <- readRDS(system.file("extdata", "MouseBrainCoords.rds",
    package = "SpNeigh"
))
head(coords)
#>          x        y cell cluster
#> 1 1898.815 2540.963    1       4
#> 2 1895.305 2532.627    2       4
#> 3 2368.073 2534.409    3       2
#> 4 1903.726 2560.010    4       4
#> 5 1917.481 2543.132    5       4
#> 6 1926.540 2560.044    6       4

# Plot all cells without boundaries

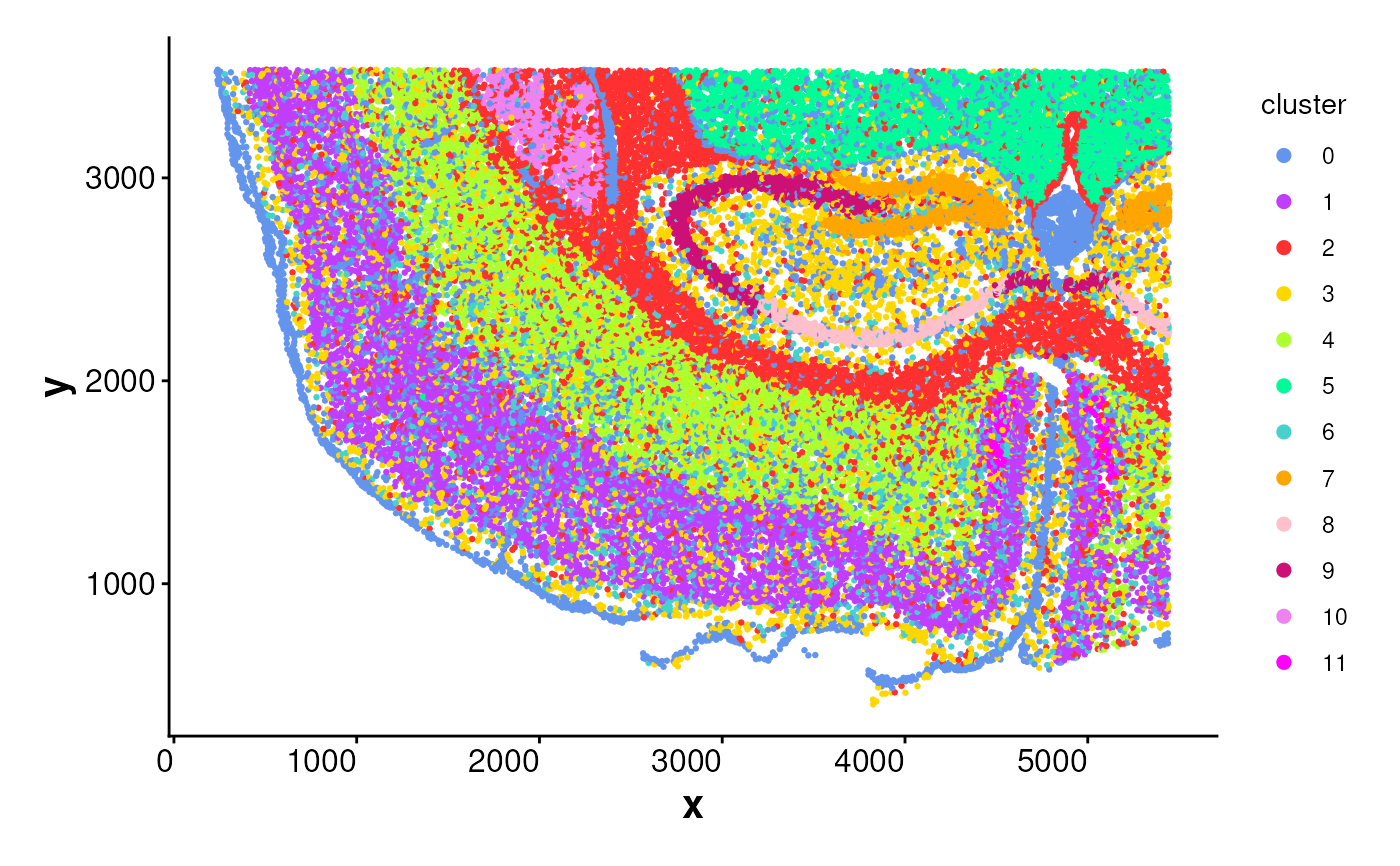

plotBoundary(coords)


# Plot one cluster and its boundary

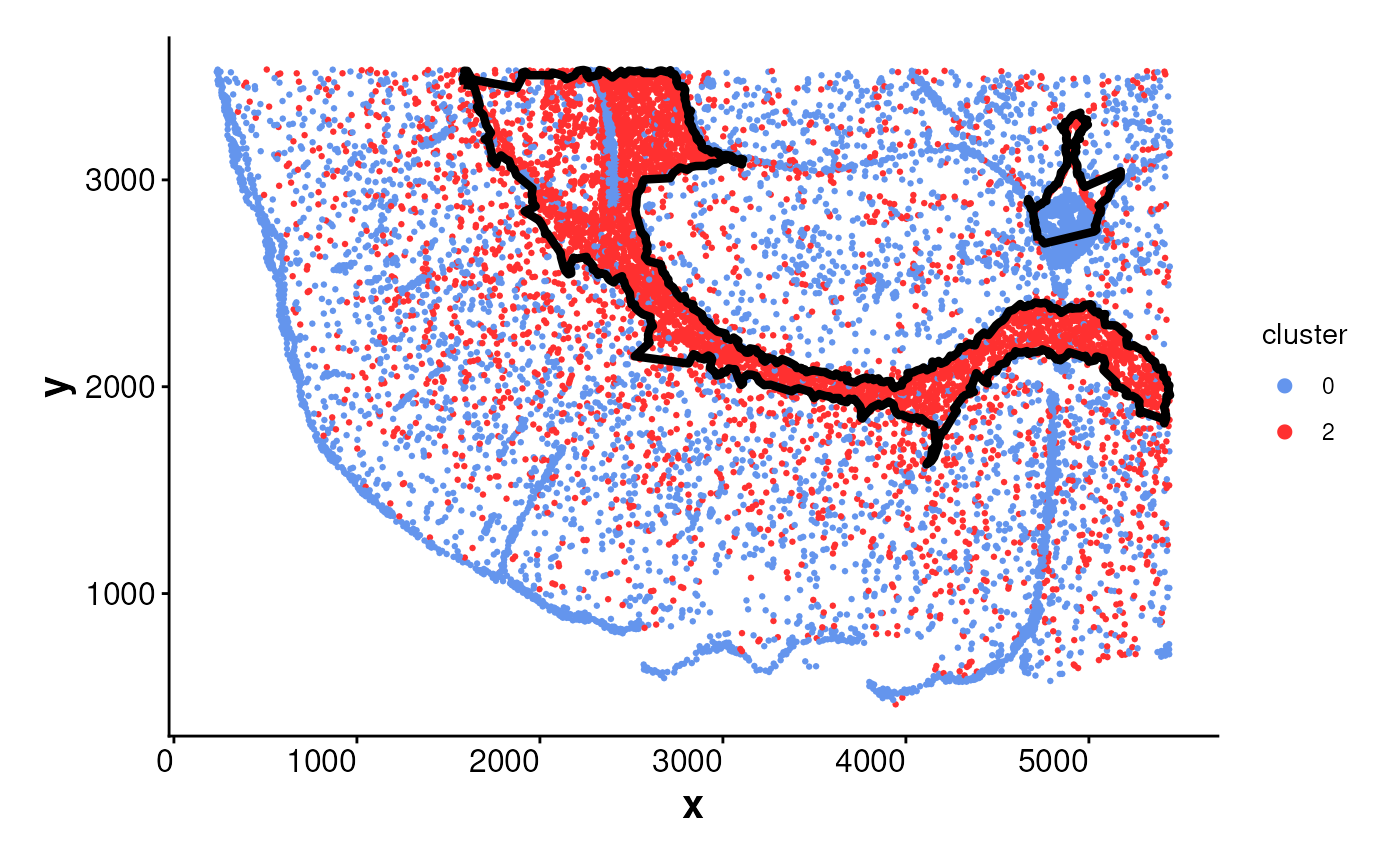

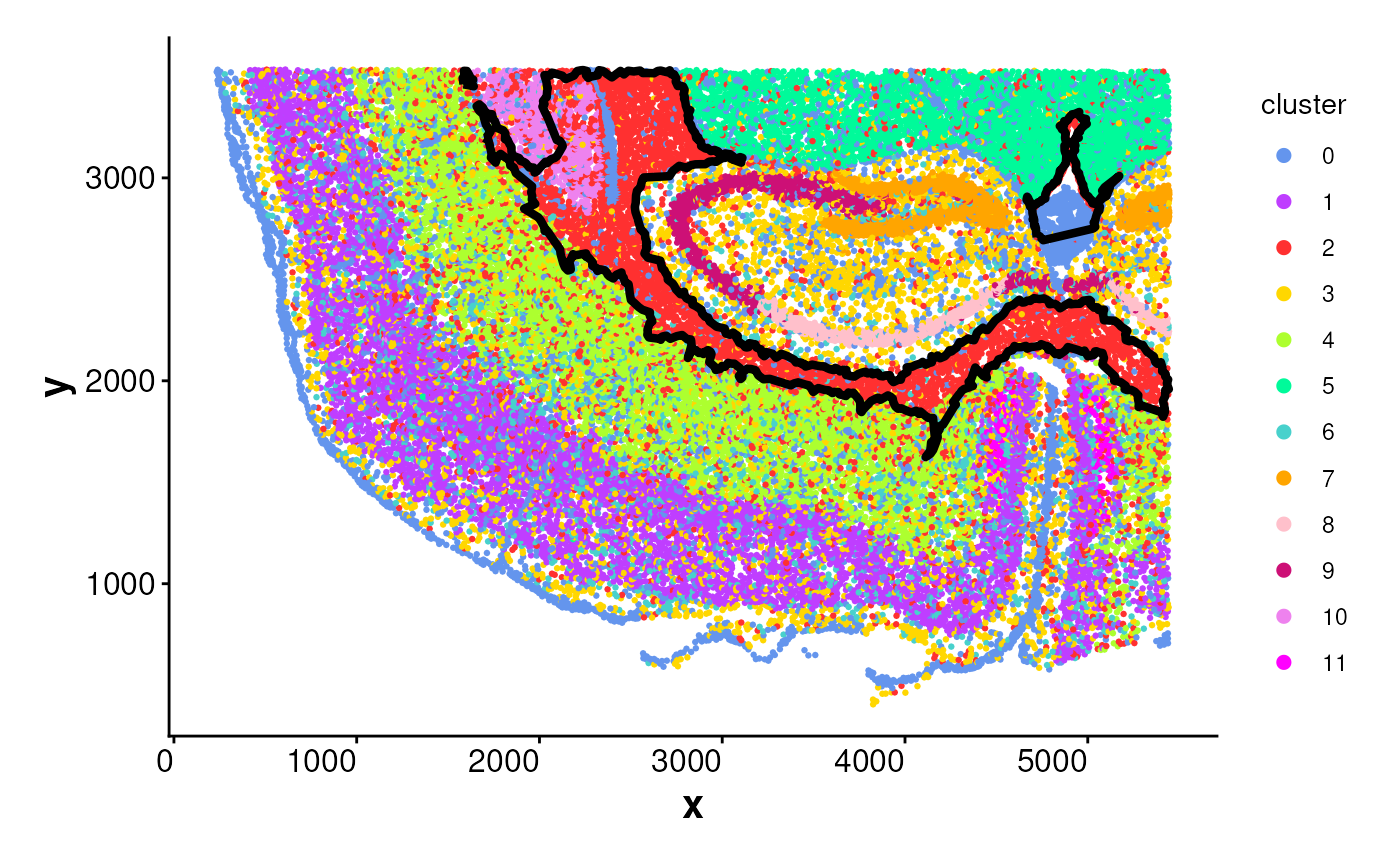

plotBoundary(coords, one_cluster = 2)


# Manually compute boundary and plot
boundary_points <- getBoundary(
    data = coords, one_cluster = 2,
    eps = 120, minPts = 10
)

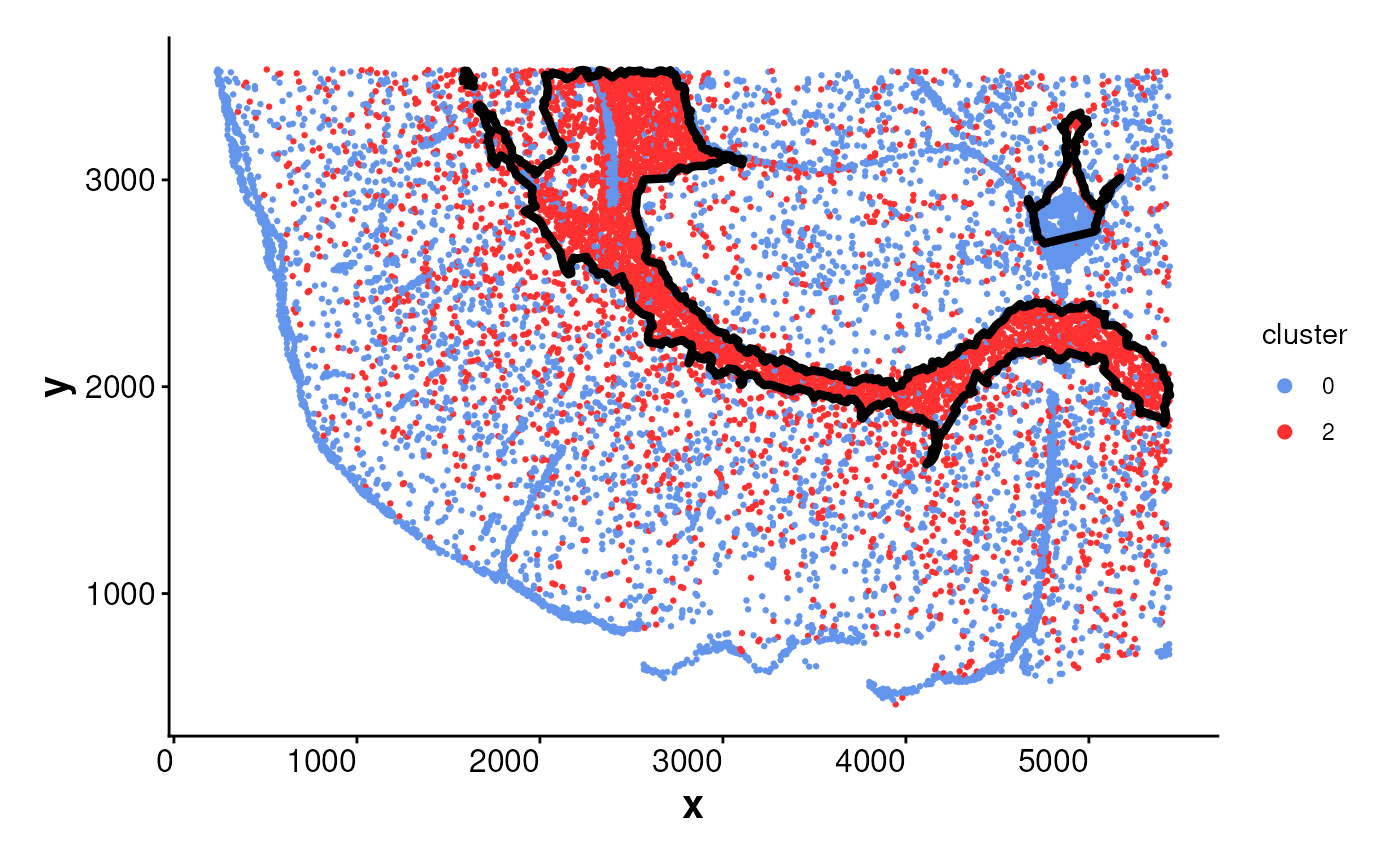

plotBoundary(data = coords, boundary = boundary_points)


# plotBoundary for a SpatialExperiment object
logNorm_expr <- readRDS(system.file("extdata", "LogNormExpr.rds",
    package = "SpNeigh"
))
coords_sub <- subset(coords, cluster %in% c("0", "2"))
coords_sub <- as.matrix(coords_sub[, c("x", "y")])
metadata_sub <- subset(
    coords[, c("cell", "cluster")],
    cluster %in% c("0", "2")
)

spe <- SpatialExperiment::SpatialExperiment(
    assay = list("logcounts" = logNorm_expr),
    colData = metadata_sub,
    spatialCoords = coords_sub
)

plotBoundary(data = spe, one_cluster = 2)


# plotBoundary for a Seurat object
seu_sp <- Seurat::CreateSeuratObject(
    assay = "Spatial",
    counts = logNorm_expr,
    meta.data = metadata_sub
)
SeuratObject::LayerData(seu_sp,
    assay = "Spatial",
    layer = "data"
) <- logNorm_expr

cents <- SeuratObject::CreateCentroids(coords_sub[, c("x", "y")])
fov <- SeuratObject::CreateFOV(
    coords = list("centroids" = cents),
    type = c("centroids"),
    assay = "Spatial"
)
seu_sp[["fov"]] <- fov

seu_sp$seurat_clusters <- seu_sp$cluster

plotBoundary(data = seu_sp, one_cluster = 2, eps = 120)
